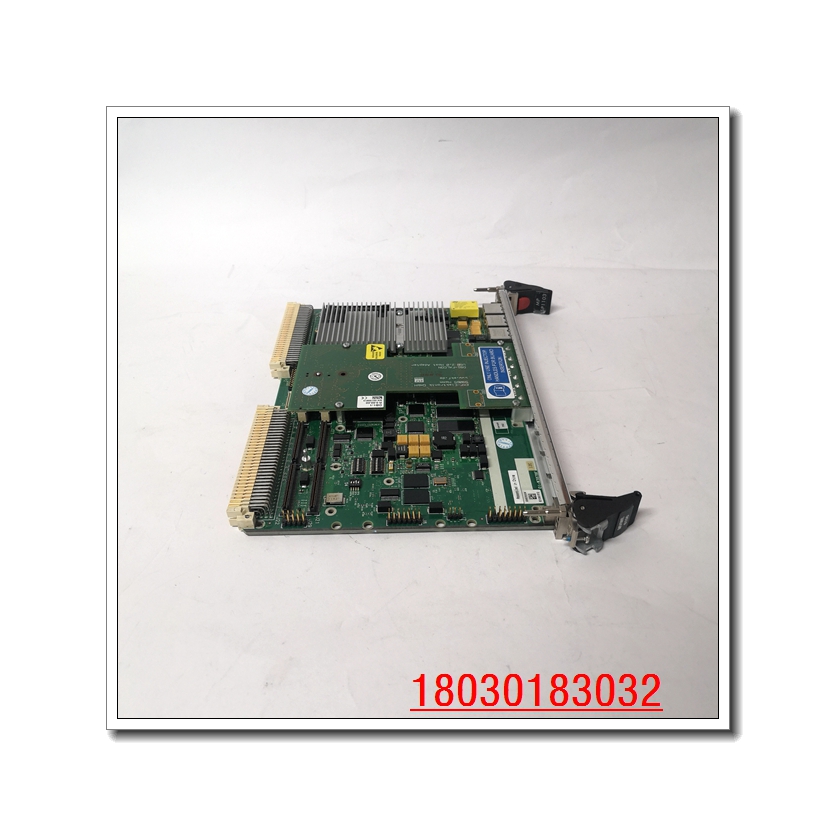

MOTOROLA MVME6100-0161 高性能单板计算机模块

MOTOROLA MVME6100-0161 是一款高性能的单板计算机模块，专为数据密集型应用程序设计。以下是该模块的一些关键特性和应用案例：

高性能处理器：MVME6100-0161 配备了摩托罗拉MPC7457 1.3 GHz PowerPC处理器，非常适合处理数据密集型任务，确保系统能够快速、高效地处理大量数据 。

出色的VMEbus性能：该模块采用Tsi148 VMEbus接口芯片，支持2eSST（双边缘源同步传输）协议，使得VMEbus在大多数情况下以320MB/s的实际带宽运行 。

先进的内存和总线技术：支持133 MHz主机总线和133 MHz DDR内存总线，最多可达2GB DDR ECC的内存，确保了系统的高效运行 。

灵活的扩展能力：MVME6100-0161 提供两个64位PCI-X总线接口，其中一个专门提供100MHz的PMC支持，另一个以133 MHz的频率专用于VMEbus网桥。此外，还提供了双64位、33/66/100MHz的PMC-X扩展槽支持 。

高速网络通信：双千兆位以太网接口，为系统提供了高速的网络连接能力 。

应用场景：

复杂的控制系统：MVME6100-0161及其系列控制板广泛应用于各种产业、军事和嵌入式体系需要，例如复杂的控制系统、数据采集系统、机器人控制等 。

医疗设备：在医疗设备中，处理板可以用于图像处理、医疗诊断和医疗数据采集 。

航空电子设备：MVME6100-0161可用于航空航天领域的应用，包括飞行控制和军事通信 。

通信设备：该模块也适用于网络路由器、交换机和数据通信设备，支持高性能通信任务 。

操作系统支持：MVME6100-0161 通常支持多种操作系统，如VxWorks、Linux等，提供了稳定的运行环境和丰富的软件开发工具 。

通信接口：MVME6100-0161 通常具有多种通信接口，如以太网、串行接口、CAN总线等，这些接口可以用于与其他设备、网络或控制系统进行数据交换和通信 。

数据存储：该模块通常具有可扩展的存储器，包括内存和存储设备，用于存储程序、数据和配置信息，确保系统的正常运行和数据的安全性 。

可靠性和稳定性：MVME6100-0161 经过严格的测试和验证，具有高可靠性和稳定性，能够在恶劣的工业环境下长时间运行，并应对振动和冲击等不利条件 。

这些特性使得MVME6100-0161成为各种高性能和可靠性要求的应用的理想选择。

MVME6100-0161 单板计算机支持多种操作系统，主要包括 VxWorks 和 Linux 。这些操作系统为用户提供了稳定的运行环境和丰富的软件开发工具，从而为用户提供了更多的开发选择和灵活性。

VxWorks 是一种实时操作系统，它因其高性能、可靠性和实时性而被广泛应用于嵌入式系统，特别是那些对任务执行时间有严格要求的系统。VxWorks 提供了丰富的网络、图形和设备驱动支持，非常适合需要快速响应和高可靠性的应用场景。

Linux 是一个开源的操作系统内核，它支持多用户、多任务、多线程和网络功能。Linux 系统以其灵活性、稳定性和强大的社区支持而受到开发者和用户的青睐。对于需要自定义开发和高度可配置性的嵌入式应用，Linux 是一个很好的选择。

MVME6100-0161 单板计算机结合了高性能的处理器、先进的内存和总线技术以及灵活的扩展能力，使其成为各种高性能和可靠性要求的应用的理想选择，尤其是在工业自动化、通信、医疗、军事和航空航天等领域 。

MOTOROLA MVME6100-0161 is a high-performance single-board computer module designed for data-intensive applications. Here are some of the key features and use cases of the module:

High-performance processor: The MVME6100-0161 is equipped with the MOTOROLA MPC7457 1.3GHz PowerPC processor, which is ideal for data-intensive tasks and ensures that the system can process large amounts of data quickly and efficiently.

Excellent VMEbus performance: The module uses the Tsi148 VMEbus interface chip and supports the 2eSST (Dual Edge Source Synchronous Transmission) protocol, allowing VMEbus to operate at the actual bandwidth of 320MB/s in most cases.

Advanced memory and bus technology: Support 133 MHz host bus and 133 MHz DDR memory bus, up to 2GB DDR ECC memory, ensuring the efficient operation of the system.

Flexible scalability: The MVME6100-0161 offers two 64-bit PCI-X bus interfaces, one dedicated to 100MHz PMC support and the other dedicated to the VMEbus bridge at 133 MHz. In addition, dual 64-bit, 33/66/100MHz PMC-X expansion slot support is available.

High-speed network communication: Dual gigabit Ethernet interface provides high-speed network connection capability for the system.

Application scenario:

Complex control systems: MVME6100-0161 and its series of control boards are widely used in various industrial, military and embedded system needs, such as complex control systems, data acquisition systems, robot control and so on.

Medical devices: In medical devices, processing boards can be used for image processing, medical diagnostics, and medical data acquisition.

Avionics: The MVME6100-0161 can be used for applications in the aerospace sector, including flight control and military communications.

Communication equipment: This module is also suitable for network routers, switches and data communication equipment, supporting high-performance communication tasks.

Operating system support: MVME6100-0161 usually supports a variety of operating systems, such as VxWorks, Linux, etc., providing a stable operating environment and rich software development tools.

Communication interface: MVME6100-0161 usually has a variety of communication interfaces, such as Ethernet, serial interface, CAN bus, etc. These interfaces can be used for data exchange and communication with other devices, networks or control systems.

Data storage: The module usually has expandable memory, including memory and storage devices, for storing programs, data and configuration information to ensure the normal operation of the system and the security of the data.

Reliability and stability: The MVME6100-0161 has been rigorously tested and proven to be highly reliable and stable, capable of operating for long periods in harsh industrial environments and dealing with adverse conditions such as vibration and shock.

These features make the MVME6100-0161 ideal for a variety of applications requiring high performance and reliability.

The MVME6100-0161 single board computer supports a variety of operating systems, mainly VxWorks and Linux. These operating systems provide users with a stable operating environment and rich software development tools, so as to provide users with more development choices and flexibility.

VxWorks is a real-time operating system, which is widely used in embedded systems because of its high performance, reliability and real-time performance, especially those systems that have strict requirements on task execution time. VxWorks provides extensive network, graphics, and device driver support for applications that require fast response and high reliability.

Linux is an open source operating system kernel that supports multi-user, multi-tasking, multi-threading, and networking functions. Linux systems are favored by developers and users for their flexibility, stability, and strong community support. Linux is a good choice for embedded applications that require custom development and a high degree of configurability.

The MVME6100-0161 single board computer combines a high-performance processor, advanced memory and bus technology, and flexible scalability, making it ideal for applications with high performance and reliability requirements, especially in industrial automation, communications, medical, military, and aerospace.
