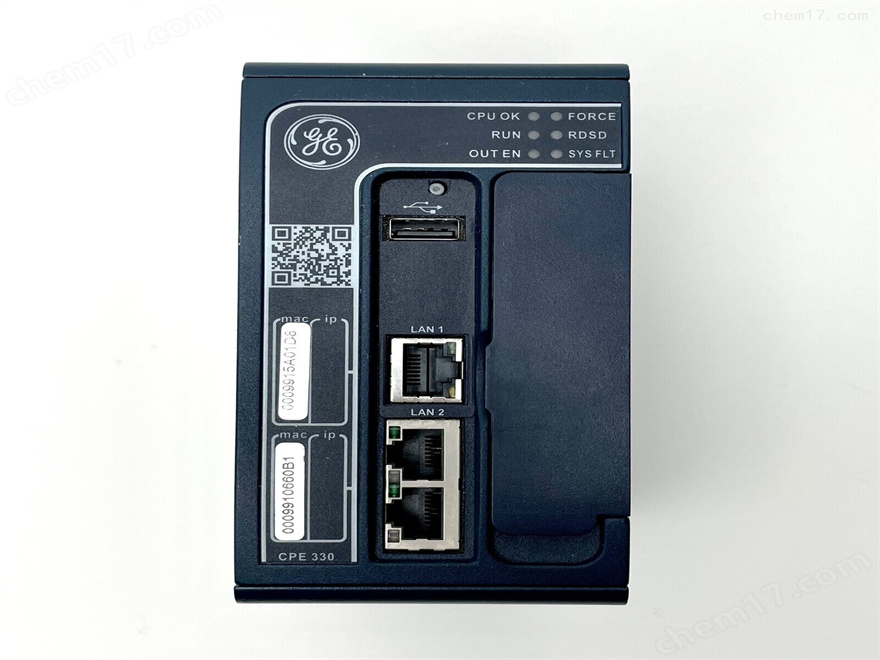

GE通用电气 IC695CPE305 控制器模块

GE通用电气IC695CPE305控制器模块是一款功能强大的中央处理器，属于GE Fanuc制造的RX3i系列。以下是关于该控制器模块的详细信息和特点：

基本特性

• 通信方式：支持多种通信方式，包括串行、Genius、CMX（反射内存）和以太网。
• 设计：采用单插槽设计，支持多达8个本地机架。
• 电气标准：电气设计符合PCI 2.2标准。
• 兼容性：与通用背板、RX3i系列PCI设备和GE Series 90-30型串行设备兼容。

技术规格

• 处理器速度：1.1 GHz。
• 用户存储容量：高达5 MB。
• 扫描速度：达到0.072 ms/k布尔量。
• 功率要求：
• 5伏直流电时1安培
• 3.3伏直流电时1安培
• 24伏直流电时0.5安培
• 通信接口：
• 以太网接口：支持10Mb/s和100Mb/s以太网数据速率，使用RJ-45配置。出厂时默认IP地址为192.168.0.100（仅支持首次通讯使用，硬件配置修改后该地址失效）。
• 串口（RJ-25/RJ-232）：用于与编程软件通讯，上装下载程序。
• USB通讯口：仅用于与移动存储设备进行程序转移，如上传或下载程序到U盘。

配置与编程

• 需要使用Proficy Machine Edition Logic Developer 7.0 SIM 3或更高版本的软件进行配置。
• 支持SNP从站、串行I/O和Modbus RTU从站串行协议。

其他特点

• 安全性：支持SRTP、EGD和Modbus TCP，提供4级密码保护、OEM密码保护、程序块的View and Edit加锁等安全选项。
• 适应性：内置交换机减少硬件费用，下凹的以太网接口保护通讯线。

The GE IC695CPE305 controller module is a powerful central processing unit in the RX3i family manufactured by GE Fanuc. The following are the details and features of the controller module:

Basic characteristic

Communication mode: Supports multiple communication modes, including serial, Genius, CMX (Reflected memory), and Ethernet.

Design: Single-slot design supports up to 8 local racks.

Electrical standards: Electrical design meets PCI 2.2 standards.

Compatibility: Compatible with universal backplanes, RX3i Series PCI devices, and GE Series 90-30 serial devices.

Technical specification

Processor speed: 1.1 GHz.

User storage capacity: up to 5 MB.

Scanning speed: up to 0.072 ms/k Boolean.

Power requirements:

1 amp at 5 volts DC

1 amp at 3.3 volts DC

0.5 amps at 24 volts DC

Communication interface:

Ethernet interface: Supports 10Mb/s and 100Mb/s Ethernet data rates, using the RJ-45 configuration. The default IP address before delivery is 192.168.0.100 (This IP address is used only for the first communication and becomes invalid after the hardware configuration is modified).

Serial port (RJ-25/RJ-232) : Used to communicate with programming software and install download programs.

USB communication port: Only used for program transfer with mobile storage devices, such as uploading or downloading programs to a USB flash drive.

Configuration and programming

Configuration is required using Proficy Machine Edition Logic Developer 7.0 SIM 3 or later.

Supports SNP slave, serial I/O, and Modbus RTU slave serial protocols.

Other characteristics

Security: Supports SRTP, EGD, and Modbus TCP, and provides security options such as 4-level password protection, OEM password protection, and block View and Edit locking.

Adaptability: Built-in switches reduce hardware costs and concave Ethernet interfaces protect communication lines.
