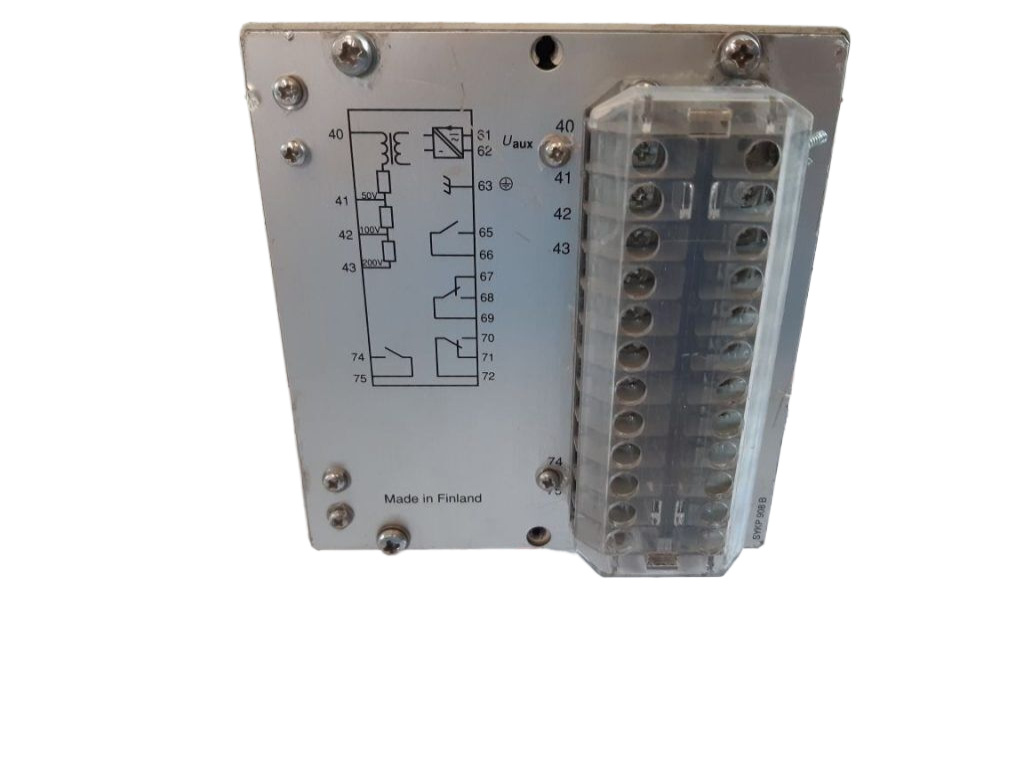

SPAE010 RS493001-MA ABB继电保护器

ABB SPAE010 是一种高阻抗保护继电器，它具备以下特点和功能：

高阻抗制动型继电器：SPAE010 可以避免因电流互感器（CT）饱和而产生误动作 。

快速响应：动作时间大约为15ms（不包括辅助跳闸出口继电器），确保在故障发生时能迅速响应 。

高灵敏度：一次侧动作电流一般约为2%的电流互感器，显示出其高灵敏度 。

稳定性：在区外故障时，即使电流互感器饱和，也能可靠不误动 。

工作原理：SPAE010 主要用于电力系统中，通过测量电源电压和电流的相位差来识别发生的故障类型，如过载、短路等。当检测到故障时，继电器会迅速切断电源以保护电力设备 。

适用场景：SPAE010 广泛应用于各种电力设备的保护中，确保电力系统的安全和稳定运行 。

此外，SPAE010 和 SPAE011 是具有相同功能的差动电流接地故障保护继电器，它们之间的唯一区别是辅助电源电压范围不同。SPAE010 的辅助电源电压范围为80-265 V ac，而 SPAE011 为18-80 V dc。SPAE 继电器是用于变压器、电机和发电机的接地故障保护，内置了所需的稳定电阻器，具有总操作时间短和稳定性高的特点，对所有类型的机械和电气干扰具有很强的抗扰性 。

ABB SPAE010 is a high impedance protective relay with the following features and functions:

High impedance brake relay: SPAE010 avoids misoperation due to current transformer (CT) saturation.

Fast response: The operation time is approximately 15ms (excluding the auxiliary trip outlet relay), ensuring a rapid response in the event of a failure.

High sensitivity: A current transformer with a primary side action current is generally about 2%, showing its high sensitivity.

Stability: In the case of failure outside the area, even if the current transformer is saturated, it can be reliable without misoperation.

Working principle: SPAE010 is mainly used in power systems to identify fault types such as overload, short circuit and so on by measuring the phase difference between power supply voltage and current. When a fault is detected, the relay quickly cuts power to protect the power equipment.

Application scenario: SPAE010 is widely used in the protection of various power equipment to ensure the safe and stable operation of the power system.

In addition, SPAE010 and SPAE011 are differential current ground fault protection relays with the same function, the only difference between them is that the auxiliary supply voltage range is different. The auxiliary supply voltage range for the SPAE010 is 80-265 V ac, while the SPAE011 is 18-80 V dc. SPAE relays are used for ground fault protection of transformers, motors and generators, with built-in stabilizing resistors required, short overall operating time and high stability, and strong immunity to all types of mechanical and electrical interference.
